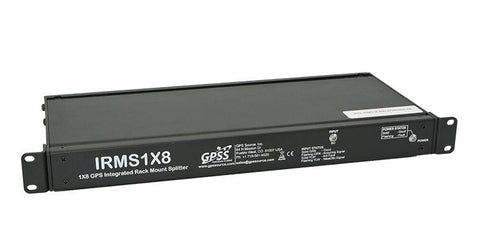

GPS 1x8 Integrated Rack Mount Splitter (IRMS18)

The IRMS18 single input, 8 output splitter amplifies and the GPS/GNSS signal from one GPS receive antenna while granting up to 8 GPS/GNSS receivers signal access at any time. The most common use being the input from an active GPS roof antenna or GPS simulator is split to eight receiving GPS units or timing boards.

For Quotes or Ordering, call +1 719-421-7300 or email GPSS-Sales@gd-ms.com today for product pricing, available options, questions, or technical support.

Key Features

Rack mounts are commonly used by cellular, timing, and test labs utilizing GPS. The IRMS18 is available with more options than other competitive products.

A GNSS receiver within the IRMS18 monitors the antenna signal strength. There is also internal monitoring of the antenna current draw.

The dual power supply option allows two internal power supply units to share the load. If one unit is not available, the other will seamlessly take over without any loss of power. The power supply LED fault indicator is clearly visible on the front panel, and can also transmit using the contacts made available on the back panel.

For diagnostic purposes, the IRMS18 also features a DB9 female connector interface on the back panel.

• 8 GPS/GNSS Output Ports
• Single Antenna Input Port
• +/-48VDC Redundant Power Supplies
• Embedded Antenna Health Sensor
• Passes GPS L1/L2, GLONASS L1/L2, Galileo, Beidou
• Antenna Fault Indicator Light
• Power Fault Indicator Light
• Embedded Receiver to Monitor Signal
• Dual Power Option
• Standard 19 Inch Rack Mount Configuration

Technical Data

Ordering Information

Lead time for this product is 10 business days. Contact Us for lead time and pricing on quantities over five.
