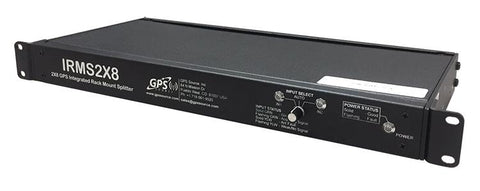

GPS 2x8 Integrated Rack Mount Splitter (IRMS28)

The IRMS28 dual input, 8 output splitter amplifies and the GPS/GNSS signal from two GPS receive antennas while granting up to 8 GPS/GNSS receivers signal access at any time. The most common use being the input from an active GPS roof antenna or GPS simulator is split to eight receiving GPS units or timing boards.

For Quotes or Ordering, call +1 719-421-7300 or email GPSS-Sales@gd-ms.com today for product pricing, available options, questions, or technical support.

Key Features

Rack mounts are commonly used by cellular, timing, and test labs utilizing GPS. The IRMS28 is available with more options than other competitive products.

Redundancy is built into the unit with dual antenna inputs. The IRMS28 has the ability to automatically switch antennas, allowing all connected devices to remain fully functional in the event of an antenna failure. An external rotary switch on the front panel allows the user to manually select the desired antenna inputs.

A GNSS receiver within the IRMS28 monitors the antenna signal strength. There is also internal monitoring of both antennas’ current draw. The IRMS28 will automatically choose the healthiest antenna. The device has been designed so that antenna selection can optionally be controlled externally via a rotary switch overriding the internal automatic switch mechanism.

The dual power supply option allows two internal power supply units to share the load. If one unit is not available, the other will seamlessly take over without any loss of power. The power supply LED fault indicator is clearly visible on the front panel, and can also transmit using the contacts made available on the back panel.

For diagnostic purposes, the IRMS28 also features a DB9 female connector interface on the back panel.

• 8 GPS/GNSS Output Ports
• Dual Antenna Input Port
• +/-48VDC Redundant Power Supplies
• Embedded Antenna Health Sensor
• Passes GPS L1/L2, GLONASS L1/L2, Galileo, Beidou
• Antenna Fault Indicator Light
• Power Fault Indicator Light
• Embedded Receiver to Monitor Signal
• Dual Power Option
• Standard 19 Inch Rack Mount Configuration

Technical Data

Ordering Information

For Quotes or Ordering, call +1 719-421-7300 or email GPSS-Sales@gd-ms.com today for product pricing, available options, questions, or technical support

Contact Us for lead time, and pricing on quantities over five.
