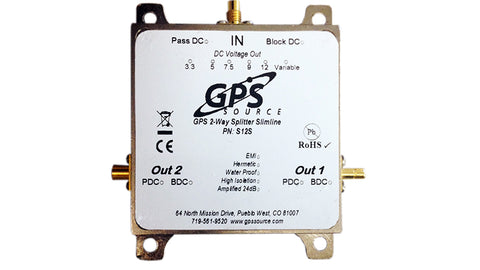

GPS 1x2 Slimline Splitter (S12S)

The S12S GPS Splitter is a one-input, two-output GPS device. This product typically finds application where an input from an active GPS roof antenna is split evenly between two receiving GPS units. In this scenario, the S12 can be configured to pass DC from an RF output (J1) to the antenna input port in order to power an active GPS antenna on that port. The second RF output would feature a 200 Ohm DC load to simulate an antenna DC current draw for any receiver connected to that port.

For Quotes or Ordering, call +1 719-421-7300 or email GPSS-Sales@gd-ms.com today for product pricing, available options, questions, or technical support.

Key Features

• Amplified and Passive Versions Available
• Frequency response for GPS L1/L2, Galileo, & GLONASS
• Excellent Gain Flatness
• Gain |L1-L2| < 2dB
• RoHS/WEEE Compliant
• Designed to MIL-STD-810

Technical Data

Standard configuration on non-powered splitters is to pass DC on the input and port1, Block DC on all of the remaining ports.

Standard configuration on powered splitters is to pass DC on the input and block DC on all outputs.

Ordering Information

Order frequency and quantity are not considered in our online pricing. The values shown reflect the current market price for up to five units; pricing is valid for that day only. So, please make sure to call GPS Source should you have any projects, quantities or order values that might merit special pricing considerations.

Lead time for this product is 6 days. Contact Us for lead time and pricing on quantities over five.
