Supports US Army's Assured PNT Strategy
E-FLO-M provides a single platform for distribution of PNT data with port independence. Each PNT device that is plugged into the ED3 has full control over the port from the ED3, as if the device has its own DAGR.
E-FLO-M functions as a secure GPS Hub or Router. One E-FLO-M can serve IS-GPS-153 PNT data simultaneously to multiple communication or weapon systems that require secure GPS information.
E-FLO-M conveniently fits in the same bracket used by the DAGR and uses standard DAGR cabling.

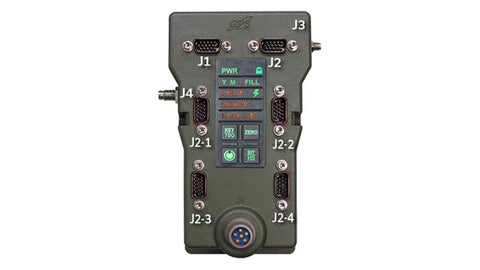

Interface Options
4 Inputs (8 with custom cabling)
J1 - SINCGARS / Key Fill
J2 - Service and Programming
J2-1 thru J2-4 DAGR Compatible Interfaces
J3 - Antenna Input
J4 - 28 VDC Vehicle Power Input
J5 - 6 pin Key Fill
Outputs: 4 ea. RS-232 and 4 ea. RS-422 Serial Ports, (Equivalent to DAGR J2)*
Form Factor: DAGR Mount
All Interfaces Compatible to DAGR J1 & J2 Connectors
Physical Specifications
Total Weight: 1 lb
Overall Size: 3.74" x 6.37" x 1.64"
Embedded GPS Receiver
(MIL-PRF-GB-GRAM-300A for details.)
Technical Data
General Information
For customized quotes and help with system design, call or email GPSS-Sales@gd-ms.com today. We can also answer any questions regarding product pricing, customized options, specifications, or technical support issues.
Developer Kit
A complete set of tools that allow an integrator to incorporate E-FLO-G into a mix of communication, control and ISR equipment.
- E-FLO-M
- FLOtalkTM software
- Technical Reference Manual
- DAGR AC Power Adapter
- L1/L2 Active Antenna
- DAGR to Remote Antenna Cable
- DAGR to PC Cable
FLOtalkTM Receiving secure PNT data and distributing to multiple devices is simple when using FLOtalkTM software, This custom designed software has an easy to use graphical interface, allowing each port on the E-FLO-G to be configured for any GPS/PNT (IS-GPS-153 compliant) enabled device. A DAGR to PC cable is included, supplying immediate interoperability between E-FLO-G and a standard PC unit.
